simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES > Class Template Reference

#include <tlm_fw_transport_if_handler.h>

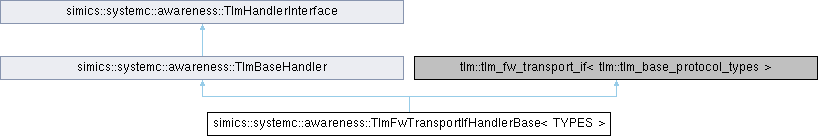

Inheritance diagram for simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >:
simics::systemc::awareness::TlmBaseHandler simics::systemc::awareness::TlmHandlerInterface

Public Types

typedef tlm::tlm_fw_transport_if< TYPES > FW_IF

typedef TYPES::tlm_payload_type transaction_type

typedef TYPES::tlm_phase_type phase_type


Public Member Functions

 TlmFwTransportIfHandlerBase ()

tlm::tlm_sync_enum nb_transport_fw (transaction_type &trans, phase_type &phase, sc_core::sc_time &t) override

void b_transport (transaction_type &trans, sc_core::sc_time &local_time_offset) override

bool get_direct_mem_ptr (transaction_type &trans, tlm::tlm_dmi &dmi_data) override

unsigned int transport_dbg (transaction_type &trans) override

FW_IF * fw_if ()

- Public Member Functions inherited from simics::systemc::awareness::TlmBaseHandler
 TlmBaseHandler ()

 ~TlmBaseHandler ()

 TlmBaseHandler (const TlmBaseHandler &)=delete

TlmBaseHandler & operator= (const TlmBaseHandler &)=delete

void init (ProxyInterface *proxy, instrumentation::ToolController *controller) override

void enable () override

void disable () override

virtual instrumentation::ToolController * controller ()

virtual ProxyInterface * proxy ()

virtual void set_tlm_iface (TlmIfaceInterface *tlm_iface)

virtual sc_core::sc_interface * iface ()

- Public Member Functions inherited from simics::systemc::awareness::TlmHandlerInterface
virtual void init (ProxyInterface *proxy, instrumentation::ToolController *controller)=0

virtual void enable ()=0

virtual void disable ()=0

virtual ~TlmHandlerInterface ()


Additional Inherited Members

- Static Public Member Functions inherited from simics::systemc::awareness::TlmBaseHandler
template<typename TYPES >
static tlm::tlm_base_socket_if * initiatorSocket (tlm_utils::callback_binder_fw< TYPES > *cb)

template<typename TYPES >
static TlmMultiHandlerInterface * initiatorExPortHandler (tlm_utils::callback_binder_fw< TYPES > *cb)

static TlmHandlerInterface * initiatorFwSocketHandler (sc_core::sc_object *obj)

static TlmHandlerInterface * initiatorBwSocketHandler (sc_core::sc_object *obj)

static TlmHandlerInterface * targetFwSocketHandler (sc_core::sc_object *obj)

static TlmHandlerInterface * targetBwSocketHandler (sc_core::sc_object *obj)

template<typename TYPES >
static TlmHandlerInterface * mPInitiatorFwSocketHandler (tlm::tlm_fw_transport_if< TYPES > *socket)

template<typename TYPES >
static TlmHandlerInterface * mPInitiatorFwMpSocketHandler (tlm::tlm_fw_transport_if< TYPES > *socket)

template<typename TYPES >
static TlmHandlerInterface * mPInitiatorBwSocketHandler (tlm_utils::callback_binder_bw< TYPES > *cb)

template<typename TYPES >
static TlmHandlerInterface * mPTargetFwSocketHandler (tlm_utils::callback_binder_fw< TYPES > *cb)

template<typename TYPES >
static TlmHandlerInterface * mPTargetBwSocketHandler (tlm_utils::callback_binder_fw< TYPES > *cb)

template<typename TYPES >
static TlmHandlerInterface * mPtargetBwSocketHandler (tlm::tlm_bw_transport_if< TYPES > *socket)


Member Typedef Documentation

◆ FW_IF

template<typename TYPES = tlm::tlm_base_protocol_types>
typedef tlm::tlm_fw_transport_if<TYPES> simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >::FW_IF

◆ phase_type

template<typename TYPES = tlm::tlm_base_protocol_types>
typedef TYPES::tlm_phase_type simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >::phase_type

◆ transaction_type

template<typename TYPES = tlm::tlm_base_protocol_types>
typedef TYPES::tlm_payload_type simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >::transaction_type

Constructor & Destructor Documentation

◆ TlmFwTransportIfHandlerBase()

template<typename TYPES = tlm::tlm_base_protocol_types>
simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >::TlmFwTransportIfHandlerBase ( )
inline

Member Function Documentation

◆ b_transport()

template<typename TYPES = tlm::tlm_base_protocol_types>
void simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >::b_transport ( transaction_type &  trans,
sc_core::sc_time &  local_time_offset
)
inlineoverride

◆ fw_if()

template<typename TYPES = tlm::tlm_base_protocol_types>
FW_IF * simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >::fw_if ( )
inline

◆ get_direct_mem_ptr()

template<typename TYPES = tlm::tlm_base_protocol_types>
bool simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >::get_direct_mem_ptr ( transaction_type &  trans,
tlm::tlm_dmi &  dmi_data
)
inlineoverride

◆ nb_transport_fw()

template<typename TYPES = tlm::tlm_base_protocol_types>
tlm::tlm_sync_enum simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >::nb_transport_fw ( transaction_type &  trans,
phase_type &  phase,
sc_core::sc_time &  t
)
inlineoverride

◆ transport_dbg()

template<typename TYPES = tlm::tlm_base_protocol_types>
unsigned int simics::systemc::awareness::TlmFwTransportIfHandlerBase< TYPES >::transport_dbg ( transaction_type &  trans)
inlineoverride
The documentation for this class was generated from the following file:
