simics::Port< TParent > Class Template Reference

Extends ConfObject to add utilities to a Simics port object. More...

#include <port.h>

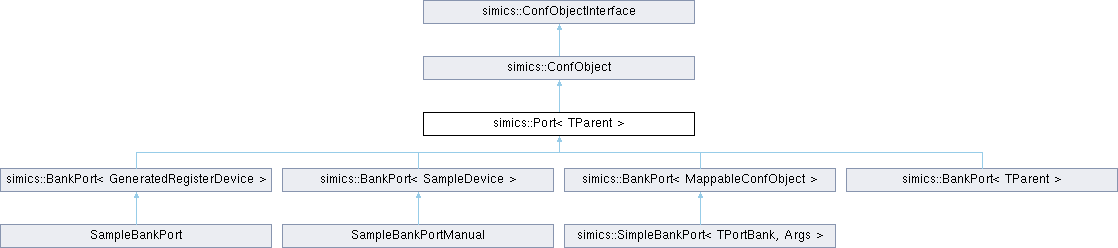

Inheritance diagram for simics::Port< TParent >:

Public Types
using	ParentType = TParent

Public Member Functions
	Port (const ConfObjectRef &obj)
virtual	~Port ()=default
ParentType *	parent () const
const std::string &	name () const
int	index () const
Public Member Functions inherited from simics::ConfObject
	ConfObject (const ConfObjectRef &obj)
	Create a ConfObject from ConfObjectRef.
virtual	~ConfObject ()=default
void	finalize () override
void	objects_finalized () override
ConfObjectRef	obj () const
	Return a ConfObjectRef represents this object.
virtual bool	finalized ()
	Return if the finalize method has been called.
Public Member Functions inherited from simics::ConfObjectInterface
virtual	~ConfObjectInterface ()=default
virtual void	finalize ()=0
virtual void	objects_finalized ()=0

Detailed Description

template<typename TParent>
class simics::Port< TParent >

Extends ConfObject to add utilities to a Simics port object.

A class inherited the ConfObject class can be registered as a port object. A port object is a child object of a parent object, which is created automatically together with its parent object. This class provides utilities to access the parent object and the index of the port object array.

Template Parameters

TParent

The parent class of the port object TParent is the template class typename for Port, typically representing the C++ class of the port's parent. A complete definition of TParent is necessary, so it is advisable to define the port class after the TParent class or as an inner class within TParent to ensure proper access to its private members. If the port class does not need to access the parent's class members, you can use ConfObject as TParent to eliminate dependencies on the parent C++ class. Or simply use ConfObject as the parent class.

Member Typedef Documentation

ParentType

template<typename TParent >

using simics::Port< TParent >::ParentType = TParent

Constructor & Destructor Documentation

Port()

template<typename TParent >

simics::Port< TParent >::Port ( const ConfObjectRef &  obj )

inlineexplicit

~Port()

template<typename TParent >

virtual simics::Port< TParent >::~Port ( )

virtualdefault

Member Function Documentation

index()

template<typename TParent >

int simics::Port< TParent >::index ( ) const

inline

Returns

the index of port object array Returns -1 if the port object is not an array or has invalid index

name()

template<typename TParent >

const std::string & simics::Port< TParent >::name ( ) const

inline

Returns

the name of the port only

parent()

template<typename TParent >

ParentType * simics::Port< TParent >::parent ( ) const

inline

Returns

a pointer to the C++ object associated with the Simics parent object

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/simics/port.h
