simics::ConnectBase Class Reference

A base class for Simics C++ interface connect class. More...

#include <connect.h>

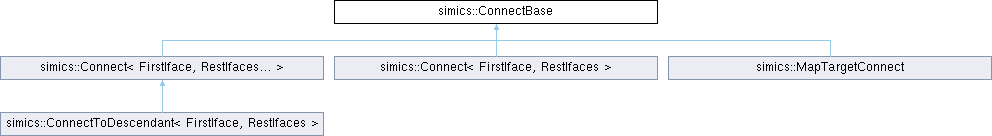

Inheritance diagram for simics::ConnectBase:

Public Member Functions
	ConnectBase ()
virtual	~ConnectBase ()=default
virtual bool	set (const ConfObjectRef &o)=0
	Set the connected configuration object.
ConfObjectRef	get () const
	Get the connected configuration object.
	operator conf_object_t * () const
	Conversion operator to conf_object_t*.

Protected Attributes
ConfObjectRef	obj_

Detailed Description

A base class for Simics C++ interface connect class.

The ConnectBase class provides common functionality for derived classes that need to manage a connection to a Simics configuration object.

Constructor & Destructor Documentation

ConnectBase()

simics::ConnectBase::ConnectBase ( )

inline

~ConnectBase()

virtual simics::ConnectBase::~ConnectBase ( )

virtualdefault

Member Function Documentation

get()

ConfObjectRef simics::ConnectBase::get ( ) const

inline

Get the connected configuration object.

Returns

The connected configuration object.

operator conf_object_t *()

simics::ConnectBase::operator conf_object_t * ( ) const

inline

Conversion operator to conf_object_t*.

Returns

A pointer to the connected configuration object.

set()

virtual bool simics::ConnectBase::set ( const ConfObjectRef &  o )

pure virtual

Set the connected configuration object.

Parameters

o	The configuration object to connect.

Returns

True if the connection was successful, false otherwise.

Implemented in simics::MapTargetConnect, simics::Connect< FirstIface, RestIfaces >, and simics::Connect< FirstIface, RestIfaces... >.

Member Data Documentation

obj_

ConfObjectRef simics::ConnectBase::obj_

protected

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/simics/connect.h
