simics::BankInstrumentationSubscribeConnection Class Reference

#include <bank-instrumentation-subscribe-connection.h>

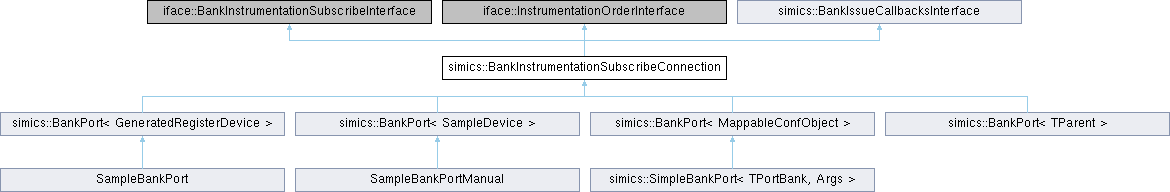

Inheritance diagram for simics::BankInstrumentationSubscribeConnection:

Public Member Functions
	BankInstrumentationSubscribeConnection ()
virtual	~BankInstrumentationSubscribeConnection ()=default
bank_callback_handle_t	register_after_read (conf_object_t *connection, uint64 offset, uint64 size, after_read_callback_t after_read, lang_void *user_data) override
bank_callback_handle_t	register_after_write (conf_object_t *connection, uint64 offset, uint64 size, after_write_callback_t after_write, lang_void *user_data) override
bank_callback_handle_t	register_before_read (conf_object_t *connection, uint64 offset, uint64 size, before_read_callback_t before_read, lang_void *user_data) override
bank_callback_handle_t	register_before_write (conf_object_t *connection, uint64 offset, uint64 size, before_write_callback_t before_write, lang_void *user_data) override
void	remove_callback (bank_callback_handle_t callback) override
void	remove_connection_callbacks (conf_object_t *connection) override
void	enable_connection_callbacks (conf_object_t *connection) override
void	disable_connection_callbacks (conf_object_t *connection) override
attr_value_t	get_connections () override
bool	move_before (conf_object_t *connection, conf_object_t *before) override
void	issue_callbacks (BankAccess *access, CallbackType type) const override
bool	empty () const
unsigned int	number_of_callbacks () const
Public Member Functions inherited from simics::BankIssueCallbacksInterface
virtual	~BankIssueCallbacksInterface ()=default
virtual void	issue_callbacks (BankAccess *handle, CallbackType type) const =0

Constructor & Destructor Documentation

BankInstrumentationSubscribeConnection()

simics::BankInstrumentationSubscribeConnection::BankInstrumentationSubscribeConnection

(

)

~BankInstrumentationSubscribeConnection()

virtual simics::BankInstrumentationSubscribeConnection::~BankInstrumentationSubscribeConnection ( )

virtualdefault

Member Function Documentation

disable_connection_callbacks()

void simics::BankInstrumentationSubscribeConnection::disable_connection_callbacks ( conf_object_t *  connection )

override

empty()

bool simics::BankInstrumentationSubscribeConnection::empty

(

)

const

enable_connection_callbacks()

void simics::BankInstrumentationSubscribeConnection::enable_connection_callbacks ( conf_object_t *  connection )

override

get_connections()

attr_value_t simics::BankInstrumentationSubscribeConnection::get_connections ( )

override

issue_callbacks()

void simics::BankInstrumentationSubscribeConnection::issue_callbacks ( BankAccess *  access, CallbackType  type  ) const

overridevirtual

Implements simics::BankIssueCallbacksInterface.

move_before()

bool simics::BankInstrumentationSubscribeConnection::move_before ( conf_object_t *  connection, conf_object_t *  before  )

override

number_of_callbacks()

unsigned int simics::BankInstrumentationSubscribeConnection::number_of_callbacks

(

)

const

register_after_read()

bank_callback_handle_t simics::BankInstrumentationSubscribeConnection::register_after_read ( conf_object_t *  connection, uint64  offset, uint64  size, after_read_callback_t  after_read, lang_void *  user_data  )

override

register_after_write()

bank_callback_handle_t simics::BankInstrumentationSubscribeConnection::register_after_write ( conf_object_t *  connection, uint64  offset, uint64  size, after_write_callback_t  after_write, lang_void *  user_data  )

override

register_before_read()

bank_callback_handle_t simics::BankInstrumentationSubscribeConnection::register_before_read ( conf_object_t *  connection, uint64  offset, uint64  size, before_read_callback_t  before_read, lang_void *  user_data  )

override

register_before_write()

bank_callback_handle_t simics::BankInstrumentationSubscribeConnection::register_before_write ( conf_object_t *  connection, uint64  offset, uint64  size, before_write_callback_t  before_write, lang_void *  user_data  )

override

remove_callback()

void simics::BankInstrumentationSubscribeConnection::remove_callback ( bank_callback_handle_t  callback )

override

remove_connection_callbacks()

void simics::BankInstrumentationSubscribeConnection::remove_connection_callbacks ( conf_object_t *  connection )

override

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/simics/bank-instrumentation-subscribe-connection.h
