SampleBank::REG1 Class Reference

#include <regs.h>

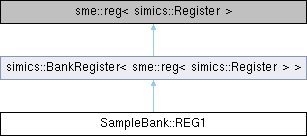

Inheritance diagram for SampleBank::REG1:

Classes
class	FIELD1
class	FIELD2

Public Attributes
FIELD1	FIELD1
FIELD2	FIELD2

Additional Inherited Members
Public Member Functions inherited from simics::BankRegister< sme::reg< simics::Register > >
	BankRegister (BankInterface *bank_iface, Name reg_name, Description desc, Offset offset, ByteSize size, InitValue value, std::initializer_list< field_t > fields={}, Args... args)

Member Data Documentation

FIELD1

FIELD1 SampleBank::REG1::FIELD1

Initial value:

{
            this, simics::Name("FIELD1"),
            simics::Description("FIELD1"),
            simics::Offset(32),
            simics::BitWidth(32)
        }

FIELD2

FIELD2 SampleBank::REG1::FIELD2

Initial value:

{
            this, simics::Name("FIELD2"),
            simics::Description("FIELD2"),
            simics::Offset(0),
            simics::BitWidth(32)
        }

---

The documentation for this class was generated from the following file:

• /disk2/mp/builds/nightly-base.745.16951401086.1/src/devices/c++-api/extensions/examples/reg_integration_example/regs.h
