Advanced Auto Mixed Precision¶

Mixed Precision uses lower-precision data types (such as FP16 or BF16) to make models run faster and with less memory consumption during training and inference.

Stock Tensorflow provides two ways to do this, Grappler Graph Optimization Auto Mixed Precision(AMP) and Keras mixed precision API.

Intel® Extension for TensorFlow* is fully compatible with Keras mixed precision API in Stock TensorFlow, and provodes an Advanced Auto Mixed Precision feature for better performance.

Overview
Advanced Auto Mixed Precision
Tune Advanced AMP Manually
Usage
Example
Tips

Overview¶

Intel® Extension for TensorFlow* provides two ways to support mixed precision:

I. Keras Mixed Precision

Support same Keras mixed precision API of stock Tensorflow. To learn Keras mixed precision API in Intel® Extension for TensorFlow*, refer to Keras Mixed Precision.

II. Advanced Auto Mixed Precision

Advanced Auto Mixed Precision (Advanced AMP) is similar with stock Tensorflow Auto Mixed Precision, but it has better usage and performance on Intel CPU and GPU.

Feature	Keras Mixed Precision API	Advanced Auto Mixed Precision
Python Model	Yes	Yes
Frozen Graph (PB) model		Yes
Based on Operation Type		Yes
Based on Operation Name	Yes

Advanced Auto Mixed Precision¶

Advanced AMP vs. Stock TensorFlow AMP¶

	Advanced AMP	Stock TensorFlow AMP
Intel CPU	Yes	Yes
Intel GPU	Yes
Custom operations provided by Intel® Extension for TensorFlow* such as LayerNorm, InstanceNorm and Swish	Yes
Python API	Yes	Yes
Environment Variable API	Yes	Yes

Data Type¶

Advanced Auto Mixed Precision supports data type depended on hardware:

	FP16	BF16
Intel CPU	No	Yes
Intel GPU	Yes	Yes

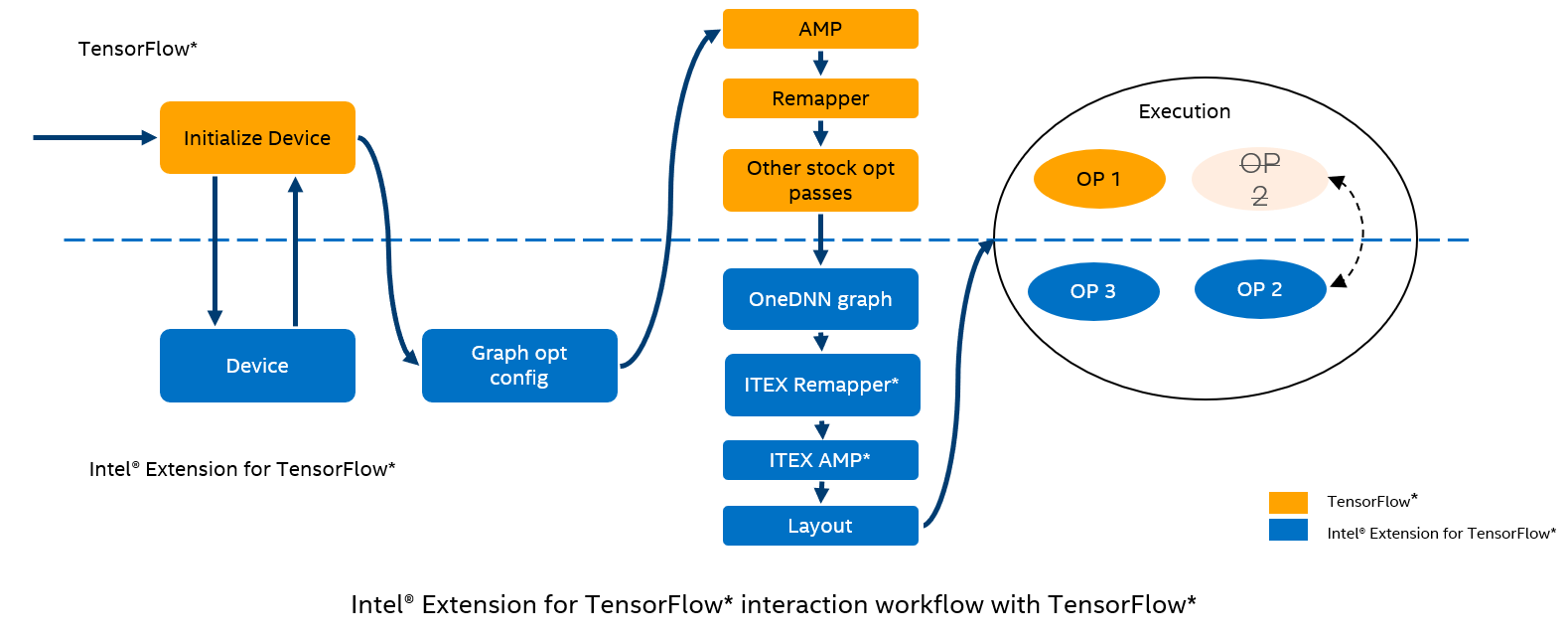

Graph Optimizer¶

Intel® Extension for TensorFlow* graph optimizer provides more powerful optimization for mixed precision graph as a stock TensorFlow custom graph optimizer.

I. After Advanced AMP of Intel® Extension for TensorFlow* is enabled, the stock Tensorflow AMP components: AMP and Remapper will be disabled automatically.

II. Intel® Extension for TensorFlow* AMP and Remapper work for mixed precision. The order is changed to: Remapper, AMP, so that fusion operations could be mixed precision.

III. Intel® Extension for TensorFlow* implements some existing operations to cover those in stock Tensorflow, for better performance in Intel hardware.

IV. Intel® Extension for TensorFlow* implements custom operations.

Feature¶

Advanced AMP based on Intel® Extension for TensorFlow* has more features to improve performance than stock TensorFlow AMP:

Provide more aggressive sub-graph fusion, such as LayerNorm and InstanceNorm fusion.
Support mixed precision in fused Operations, which is not supported by stock TensorFlow.

Tune Advanced AMP Manually¶

Generally, with default configuration, the Advanced AMP has good results balancing performance and accuracy in most cases. For advanced users with more knowledge of model and TensorFlow, you can manually tune Advanced AMP for special cases or for custom operation.

Refer to Tune Advanced Auto Mixed Precision for this advantage operations.

Usage¶

I. Install Intel® Extension for TensorFlow* in running environment.

After Installing Intel® Extension for TensorFlow*, it will be activated automatically as a plugin of stock TensorFlow.

Refer to installation instructions for more details.

II. Enable Advanced AMP.

With the default configuration, the Advanced AMP has a good balance between performance and accuracy in most cases.

	Python API	Environment Variable
Basic (Default configuration)	`import intel_extension_for_tensorflow as itex` `auto_mixed_precision_options = itex.AutoMixedPrecisionOptions()` `auto_mixed_precision_options.data_type = itex.BFLOAT16 #itex.FLOAT16` `graph_options = itex.GraphOptions()` `graph_options.auto_mixed_precision_options=auto_mixed_precision_options` `graph_options.auto_mixed_precision = itex.ON` `config = itex.ConfigProto(graph_options=graph_options)` `itex.set_backend("gpu", config)`	`export ITEX_AUTO_MIXED_PRECISION=1` `export ITEX_AUTO_MIXED_PRECISION_DATA_TYPE="BFLOAT16" #"FLOAT16"`

III. Use the Python API or environment variables to manually tune Advanced AMP for better performance, accuracy, or both.

	Python API	Environment Variable
Advanced Configuration	`auto_mixed_precision_options.allowlist_add= "AvgPool3D,AvgPool"` `auto_mixed_precision_options.inferlist_remove = "AvgPool3D,AvgPool"`	`export ITEX_AUTO_MIXED_PRECISION_ALLOWLIST_ADD="AvgPool3D,AvgPool"` `export ITEX_AUTO_MIXED_PRECISION_INFERLIST_REMOVE="AvgPool3D,AvgPool"`

Refer to Usage

Example¶

Quick Training Example¶

Train model for BF16 by Advanced AMP on GPU device.

Setup¶

Install Intel® Extension for TensorFlow*, refer to installation.

Enable Advanced AMP¶

Use either the Python API or the environment variables to enable Advanced AMP.

Python API Environment Variable

import intel_extension_for_tensorflow as itex

auto_mixed_precision_options = itex.AutoMixedPrecosionOptions()
auto_mixed_precision_options.data_type = itex.BFLOAT16

graph_options = itex.GraphOptions()
graph_options.auto_mixed_precision_options=auto_mixed_precision_options
graph_options.auto_mixed_precision = itex.ON

config = itex.ConfigProto(graph_options=graph_options)
itex.set_backend("gpu", config) export ITEX_AUTO_MIXED_PRECISION=1
export ITEX_AUTO_MIXED_PRECISION_DATA_TYPE="BFLOAT16"

Original Code¶

Insert the python API above in original code or set environment variables above before executing original code.

import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import layers


if tf.config.list_physical_devices('XPU'):
  print('The model will run with 4096 units on a XPU')
  num_units = 4096
else:
  print('The model will run with 64 units on a CPU')
  num_units = 64

inputs = keras.Input(shape=(784,), name='digits')
x = layers.Dense(num_units, activation='relu', name='dense_1')(inputs)
x = layers.Dense(num_units, activation='relu', name='dense_2')(x)
x = layers.Dense(10, name='dense_logits')(x)
x = layers.Activation('softmax', dtype='float32', name='predictions')(x)
outputs = layers.Activation('linear', dtype='float32')(x)

model = keras.Model(inputs=inputs, outputs=outputs)
model.compile(loss='sparse_categorical_crossentropy',
              optimizer=keras.optimizers.RMSprop(),
              metrics=['accuracy'])

(x_train, y_train), (x_test, y_test) = keras.datasets.mnist.load_data()
x_train = x_train.reshape(60000, 784).astype('float32') / 255
x_test = x_test.reshape(10000, 784).astype('float32') / 255

history = model.fit(x_train, y_train, batch_size=8192, epochs=5,
                    validation_split=0.2)
test_scores = model.evaluate(x_test, y_test, verbose=2)
print('Test loss:', test_scores[0])
print('Test accuracy:', test_scores[1])

Notice¶

The first epoch may be slower because TensorFlow optimizes the model during the first run. In subsequent epochs, the time will stabilize.

Tips¶

Log and Save Optimized Graph¶

Advanced AMP supports outputting the log and optimized graph by setting environment variable:

export ITEX_AUTO_MIXED_PRECISION_LOG_PATH="/my/path/"

It will trigger Intel® Extension for TensorFlow* to save the post optimized graph and detailed convert log to local folder.

Use this to check the structure of the final graph to learn the mixed precision status. It also helps to know the rules to convert operations from FP32 to BF16.

For detailed introduction, refer to Tuning Performance Example by Advanced AMP Configure List Manually

Custom Operation¶

When writing a custom operation, add it to configuration list to enable Advanced AMP.

Refer to Tune Advanced Auto Mixed Precision for more details.
