Histogram API

Use the Histogram API to define histograms that display arbitrary data in Intel® VTune™ Profiler.

Histograms are particularly useful to display statistics that can be split by individual units for cross-comparison.

You can use the Histogram API to:

Track load distribution
Track resource utilization
Identify oversubscribed or underutilized worker nodes

Any thread in the process can access any instance of a histogram, regardless of the thread that created it. The Histogram API call is thread-safe.

Define and Create a Histogram

Before you create a histogram, you must create an ITT API Domain . The pointer to this domain is then passed to the primitive.

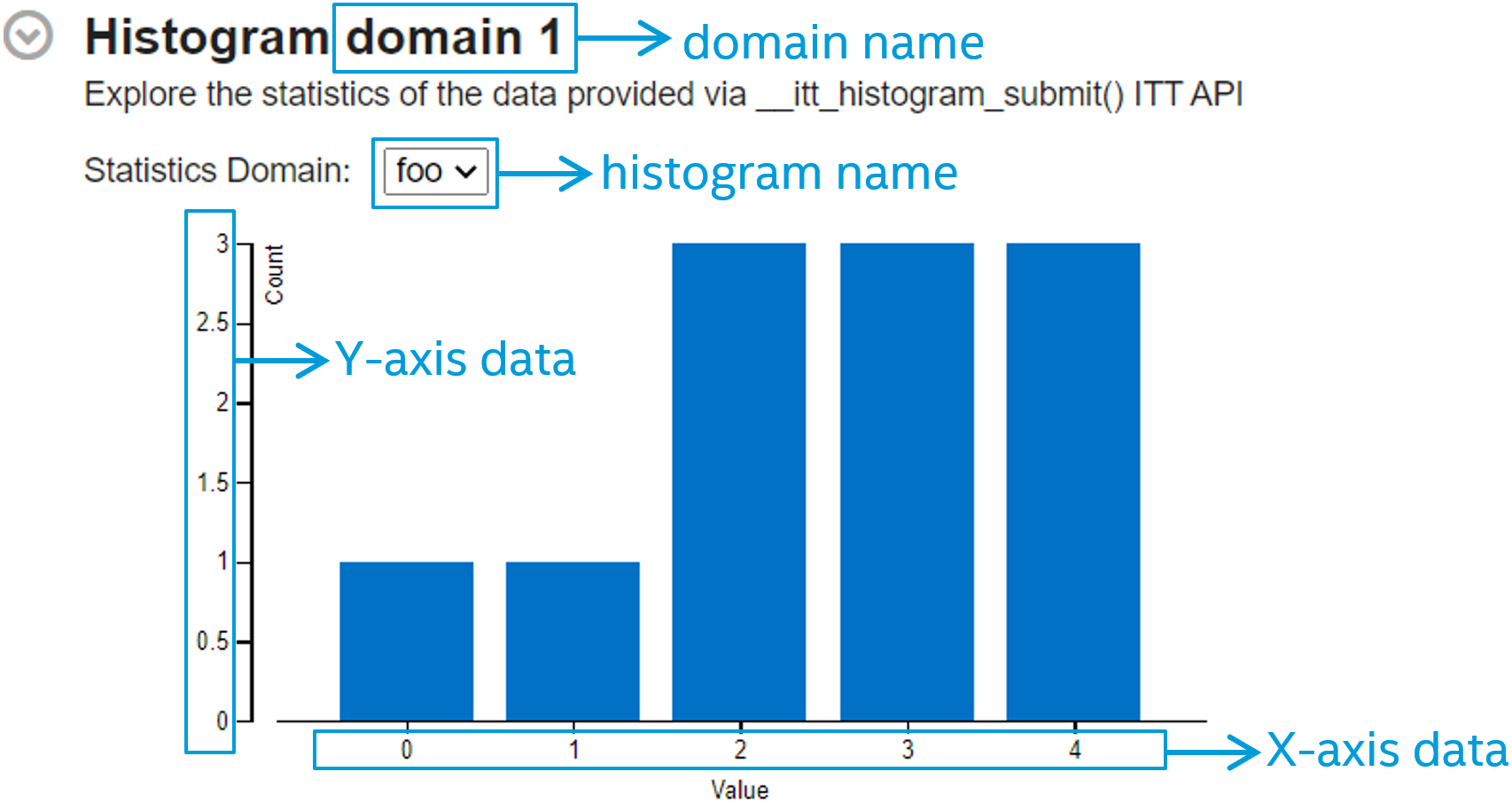

In the result display in VTune Profiler, the domain name provides a heading for the histogram section in the Summary tab.

One domain can combine any number of histograms. However, the name of the histogram must be unique within the same domain.

Parameters of the primitives:

Type	Parameter	Description
[in]	domain	Domain controlling the call
[in]	name	Histogram name
[in]	x_axis_type	Type of X axis data
[in]	y_axis_type	Type of Y axis data

Primitives:

Use This Primitive

To Do This

__itt_histogram* _itt_histogram_create(
    __itt_domain* domain,
    const char* name,
    __itt_metadata_type x_axis_type,
    __itt_metadata_type y_axis_type);

Create a histogram instance with the specified domain, name, and data type on Linux* and Android* OS.

__itt_histogram* _itt_histogram_createA(
    __itt_domain* domain,
    const char* name,
    __itt_metadata_type x_axis_type,
    __itt_metadata_type y_axis_type);

Create a histogram instance with the specified domain, name, and data type on Windows* OS for ASCII strings (char).

__itt_histogram* _itt_histogram_createW(
    __itt_domain* domain,
    const wchar_t* name,
    __itt_metadata_type x_axis_type,
    __itt_metadata_type y_axis_type);

Create a histogram instance with the specified domain, name, and data type on Windows* OS for UNICODE strings (wchar_t).

Submit Data to Histogram

Parameters of the primitives:

Type	Parameter	Description
[in]	histogram	Histogram instance to submit data to
[in]	length	Number of elements in submitted axis data array
[in]	x_axis_data	Array containing X axis data (may be `NULL`). If `x_axis_data` is `NULL`, VTune Profiler uses the indices of the `y_axis_data` array.
[in]	y_axis_data	Array containing Y axis data.

Primitives:

Use This Primitive	To Do This
void _itt_histogram_submit( __itt_histogram* histogram, size_t length, void* x_axis_data, void* y_axis_data);	Submit user statistics for the selected instance of the histogram. Just like the coordinates of a point on a 2D plane, the array data for the Y-axis is mapped to the array data for the X-axis. Data submitted during a workload run is summarized into one common histogram for all calls of this primitive. To lower collection overhead, determine an efficient interval between data submissions.

Usage Example

The following example creates a histogram to store worker thread statistics:

#include "ittnotify.h"
#include "ittnotify_types.h"


void submit_stats()
{
    // Create domain
    __itt_domain* domain = __itt_domain_create("Histogram statistics domain");


    // Create histogram
    __itt_histogram* histogram = __itt_histogram_create(domain, "Worker TID 13454", __itt_metadata_u64, __itt_metadata_u64);


    // Fill the statistics arrays with profiling data:
    uint64_t* x_stats, y_stats;
    size_t array_size;
    get_worker_stats(x_stats, y_stats, array_size);


    // Submit histogram statistics:
    __itt_histogram_submit(histogram, array_size, x_stats, y_stats);
}
